RC-47104
  • RC-47104
  • RC-47104

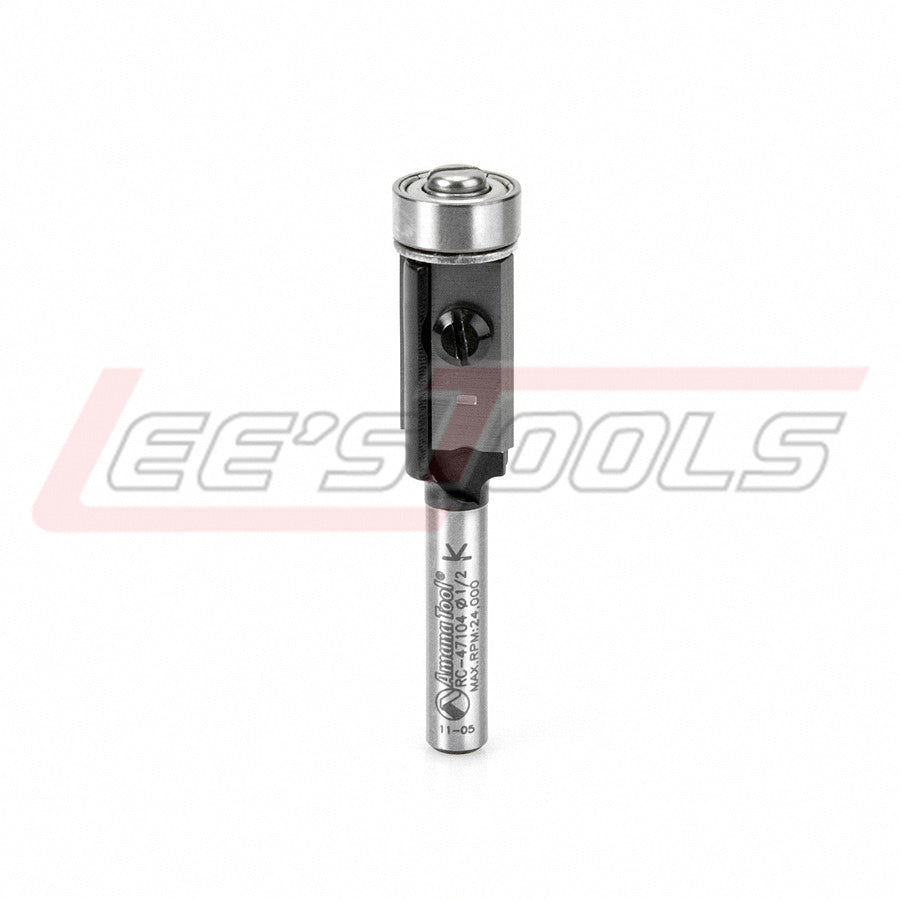

AMANA TOOL RC-47104 INSERT FLUSH TRIM 1/2 DIA 1/4

AMANA TOOL RC-47104 INSERT FLUSH TRIM 1/2 DIA 1/4

$45.30

Flush Trim Router Bits with Ball Bearing Guide

2 Flute

Use any of the flush trimming bits below for laminate work or for template and pattern work. For template application, the bearing follows the template, while the cutting edges trim the workpiece. With the router handheld, the template is on the bottom of the work. With a table-mounted router, the template is on top.

A two-flute bit is a good general-purpose choice, providing fast cuts and good finishes. Excellent for template work.

DBdLTool No.3/167/161/42MR0102 (view)1/41/21/42-1/447090*1/411/42-1/247092*3/811/42-5/8471003/81-1/41/42-3/8470933/811/23-1/8471013/81/21/42-1/8471023/813/82-7/847103†1/28mm (5/16)1/42-1/4RC-20001/27/161/42-19/64DRB-4001/211/42-5/8471041/213/161/42-5/16RC-47104•1/21/21/42-1/4471061/211/23-1/4471081/21/21/22-3/4471101/213/82-7/8471121/21-1/41/22-3/4471173/411/23-1/4471403/41-1/41/23-1/247141

Max RPM Guide for Amana Tool® Router Bits

Do not exceed the maximum RPM shown for the particular tool you are using. Max RPM for symmetrical tool only!

No exceda la maxima velocidad (RPM) indicada para cada herramienta. Máximo RPM para la herramienta simétrica solamente!

Router Bit DimensionsMax RPM2" (Less than 50)28,0002" - 2-3/8" (50-60mm)22,0002-3/8" - 2-3/4" (60-70mm)19,0002-3/4" - 3-1/4" (70-80mm)16,0003-1/4" - 3-5/8" (80-90mm)15,0003-5/8" < (90-100mm)13,000



Note: Please also refer to laser etching on router bit shank for most updated RPM speed rating.
