18V LXT® Lithium-Ion Brushless Cordless Compact RouterKit (5.0Ah)

POWER : Variable speed controldial (10,000 - 30,000 RPM) to match the speed to the application

ACCURACY : Smooth rack-and-pinionfine depth adjustment system for more precise settings

DURABILITY : Aluminum housing andbase for increased durability and accuracy

DESIGN : Dual L.E.D. lightsilluminate the work area

INCLUDES : (2) 18V LXT® 5.0Ahbatteries, rapid charger, case, plunge base, 1/4" collet, straight guide,template guides, wrenches

Corded power meets cordlessconvenience with the 18V LXT Brushless Compact Router Kit, model XTR01T7. The18V LXT Router has an efficient Makita BL™ Brushless Motor for up to 50% longerrun time, increased power and speed, and longer tool life. The kit includes twoefficient 18V LXT® 5.0Ah batteries, and each reaches a full charge in only 45minutes – the fastest charge-time in the category – for less downtime andincreased productivity.

The XTR01T7 is engineered for afull range of cabinetry and woodworking applications. It has a variable speedcontrol dial (10,000 – 30,000) RPM) to match the speed to the application, withelectronic speed control to maintain constant speed under load and soft startfeature for smoother start-ups and better accuracy. Convenience featuresinclude the smooth rack-and-pinion fine depth adjustment system for moreprecise settings, dual L.E.D. lights to illuminate the work surface, and aquick release cam lock system for convenient depth adjustments and baseremoval/installation. The kit includes a plunge base, and additional bases andattachments are available (sold separately). For users of corded Makita CompactRouters (models RT0700C, RT0701C), the bases used with these corded routers arefully compatible with the XTR01T7. In addition, the XTR01T7 easily connects toMakita vacuum cleaners with the optional dust nozzle for improved dustextraction.

It’s part of Makita’s expanding18V Lithium-Ion system, the world’s largest cordless tool system powered by 18VLithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have thefastest charge times in their categories, so they spend more time working andless time sitting on the charger.

For improved tool performance andextended battery life, Makita created Star Protection Computer Controls™. StarProtection is communication technology that allows the Star Protection-equippedtool and battery to exchange data in real time and monitor conditions duringuse to protect against overloading, over-discharging and overheating. Forincreased versatility, the tool can also be powered by Makita 18V LXT® andCompact Lithium-Ion batteries with the star symbol on the battery indicatingStar Protection inside.

Features

• Makita-built brushless motordelivers faster and more accurate cuts in a variety of materials
• The electronically-controlled BL™Brushless Motor efficiently uses energy to match torque and RPM to the changingdemands of the application
• Variable speed control dial(10,000 - 30,000 RPM) to match the speed to the application
• Electronic speed control maintainsconstant speed under load
• On/Off button with separate lockbutton helps prevent accidental start-up of the tool for user and workpieceprotection
• Soft start feature for smootherstart-ups and better accuracy
• Smooth rack-and-pinion fine depthadjustment system for more precise settings
• Slim and ergonomically designedbody with rubberized grip for increased comfort and control
• Aluminum housing and base forincreased durability and accuracy
• Dual L.E.D. lights illuminate thework area
• Quick release cam lock system forconvenient depth adjustments and base removal/installation
• High visibility base design forimproved handling and performance
• Accepts industry standardtemplate guides
• Comes with a plunge base foradded versatility (additional bases and attachments sold separately)
• Plunge capacity of 0 -1-3/8" with included plunge base attached (plunge capacity of0-1-9/16" with trimmer base sold separately)
• Base can be removed quickly toinstall other bases
• Non-marring high-durability baseinsert for increased work piece protection
• Shaft lock for quick and easy bitchanges
• Easy-to-read depth scales
• Uses 1/4" shank routers bits
• Compact and ergonomic design at8-7/8" tall; weighs only 4.6 lbs. with battery for reduced operatorfatigue
• Connects to Makita vacuumcleaners with optional dust nozzle for a cleaner work environment
• Equipped with Star ProtectionComputer Controls™ to protect against overloading, over-discharging andover-heating
• Rapid Optimum Charger and DualPort Rapid Optimum Chargers communicate with the battery's built-in chipthroughout the charging process to optimize battery life by activelycontrolling current, voltage and temperature
• Rapid Optimum Charger and DualPort Rapid Optimum Chargers have a built-in fan to cool the battery for faster,more efficient charging
• Makita technology deliverscategory-leading charge time so the battery spends more time working and lesstime sitting on the charger
• Compatible with Makita 18VLithium-Ion batteries with a Star symbol
• 3-year limited warranty on tool,battery and charger
• Only use genuine Makita batteriesand chargers

Specifications

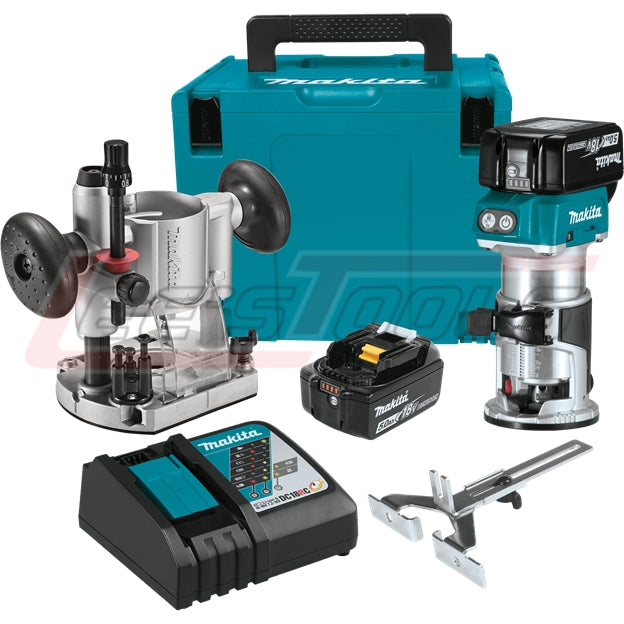

Includes

(1) 18V LXT® Brushless CompactRouter (XTR01Z)

(2) 18V LXT® Lithium-Ion 5.0AhBattery (BL1850B)

(1) 18V LXT® Lithium-Ion RapidOptimum Charger (DC18RC)

(1) Interlocking Case, X-Large(197213-3)

(1) Plunge Base (195563-0)

(1) Straight Guide (122965-7)

(1) Spanner Wrench (781011-1)

(1) Spanner Wrench (781039-9)

(1) 1/4" Collet (763637-1)

(1) Template Guide (343577-5)

(1) Template Guide 5/8"(344364-5)
