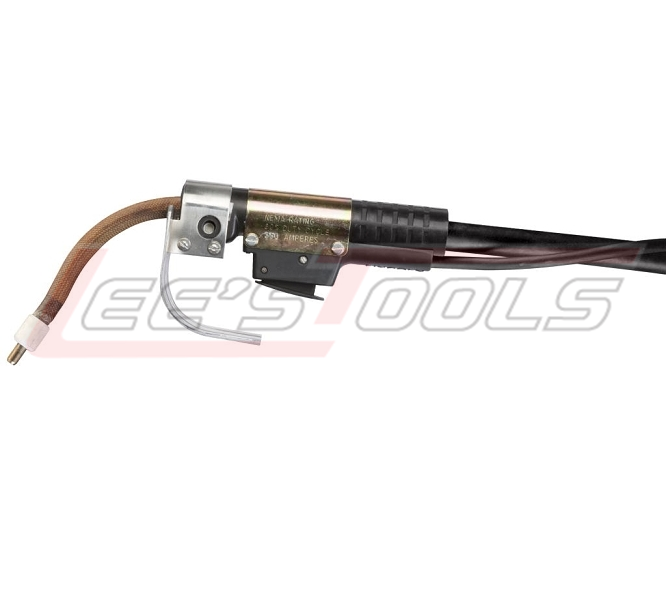

LINCOLN ELECTRIC K126-2 GUN INN.-15FT-350A

LINCOLN ELECTRIC K126-2 GUN INN.-15FT-350A

$929.15
$929.15

Lincoln Electric has been manufacturing semiautomatic flux-cored, self-shielded (FCAW-S) gun and cable assemblies for over 40 years. Magnum® self-shielded guns are rugged and reliable, yet lightweight, flexible and maneuverable. Amperage ranges from 250 to 600 amps. From the smallest repair to the largest fabrication job, Lincoln Electric’s fluxcored, self-shielded (FCAW-S) guns are a great choice.

·        Heavy-duty gun trigger switch for positive electrical contact and long life.

·        Reinforced rubber jacket adds strength and long life to cable.

·        Alternate gun tubes are available for selected guns to reach welds with limited accessibility.

·        All guns are rated at 60% duty cycle and meet NEMA specification EW3.

Processes

·         Flux-Cored Self-Shielded

Wire Diameter Range

·        .062-3/32 in. (1.6-2.4 mm)

Specifications

DUTY CYCLE AT RATED AMPERAGE60%RATED AMPERAGE350GUN TYPEhandheldlCABLE LENGTH15 ft.WIRE DIAMETER.062-3/32 in. (1.6-2.4 mm)COOLINGAir cooledDIMENSIONS (H X W X D)  IN 4.38 in x 24 in x 18.25 inDIMENSIONS (H X W X D)  MM(111.3 mm x 609.6 mm x 463.6 mm)NET WEIGHT12.000 lbs. ( 5.443 kg. )



Expendable Parts

PRODUCT NUMBERPRODUCT NAMEKP1909-1Gun Tube Assembly, 68°. (nozzle)KP1914-1Gun Tube Assembly FCAW 30° 12 inKP1914-2Gun Tube Assembly FCAW 30° 6 inKP1920-1Gun Tube Assembly (90°)KP1987-1Nozzle Insulated (Nose Cone)KP1995-1Nozzle Insulated Guide 2 in (51 mm) 068-5/64-FCKP2089-1Gun Tube Insulator / Thread Prot. FCAWKP2090-1Nozzle Insulated Guide 2.75 in (70 mm) 3/32-FCKP2094-2Insert Ceramic Gun / Nozzle TubesKP2095-4Liner Spring .133 in (3.4 mm) inner diameter .240 in (6.1 mm) outerdiameter 5.00 inKP2100-1B1Contact Tip .068-.072 in (1.7-1.8 mm), 5/16 in (7.9 mm) long, 18threadKP2100-2B1Contact Tip 1/16 in (1.6 mm), 5/16 in (7.9 mm) long, 18 threadKP2100-3B1Contact Tip 3/32 in (2.7 mm), 5/16 in (7.9 mm) long, 18 threadKP2100-4B1Contact Tip 5/64 in (2 mm), 5/16 in (7.9 mm) long, 18 threadKP2454-1Gun Tube Assembly 62° 7.5 inesKP2455-1Gun Tube Assembly 45° 6 inesKP2456-1Gun Tube Assembly 30° 12 inesKP2482-1Nozzle Assmbly (30°) 11.68 in
