QA-5000

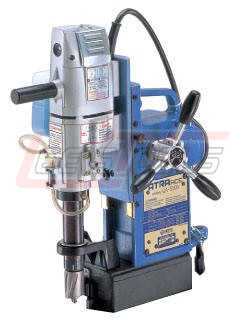

NITTO KOHKI QA-5000 Automatic Drill with One Touch 2" X 2" Hole capaity

$4,495.00
Sale price  $4,495.00 Regular price
Skip to product information
QA-5000

NITTO KOHKI QA-5000 Automatic Drill with One Touch 2" X 2" Hole capaity

$4,495.00
Sale price  $4,495.00 Regular price



Portable Fully Automatic Drilling Machine

Quick Auto Drills increases productivity and reduce hole drilling cost

Load Detection

·        Side mounted LED graph displays current drill status before, during and after the drilling operation. The load monitoring LEDs also offer advanced notice of worn or damaged cutters.

Auto-return Function

·        Once drilling is completed and the slug is ejected from the hole, the cutting bit is quickly retracted.

·        This quick drill motor retraction allows the user to move on to the next hole more quickly..

Specifications

·        Smallest and lightest Magnetic Base Drill with 3/8” chuck

·        Very easy to handle

·        Superior workhorse for drilling small holes with twist drill bits

Power Source (Single Phase)110-120 V AC 50/60HzElectric DrillRated Power Consumption (W)1,010Rated Current (A)9No Load Speed (rpm)400 / 750Magnet Power Consumption (W)75CapacityHole Diameter2" max.Depth of Cut2" max.Magnet Holding Power (lbs.)2,200Magnet Dimensions (inch)3-15/16" x 7-15/16"Weight (lbs.)57



Accessories Included

·        UEA0835-0 pilot pin 5/16" x 1-3/8" DOC

·        UEA0850-0 pilot pin 5/16" x 2" DOC

·        3 mm allen wrench

·        4 mm allen wrench

·        8 mm x 10 mm combination spanner

·        Motor side handle

·        Sample cutting fluid

·        Safety chain

·        Tool box
