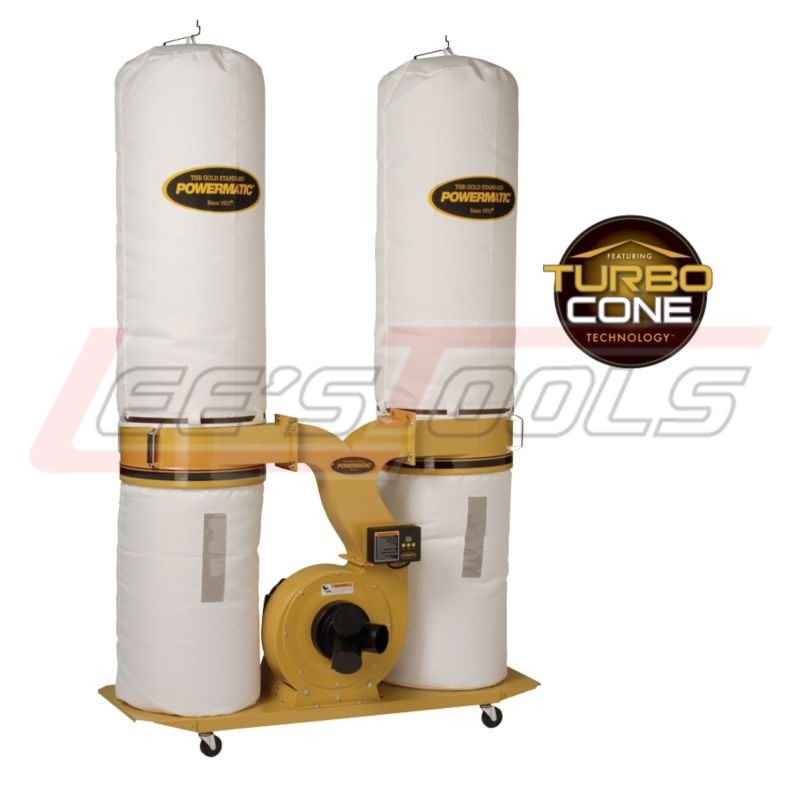

POWERMATIC 1792071K PM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit -LTL

$1,579.99
$1,579.99
Skip to product information
1792071K
  • 1792071K
  • 1792071K
POWERMATIC 1792071K PM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit -LTL

POWERMATIC 1792071K PM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit -LTL

$1,579.99
$1,579.99

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.

Product features

·        TurboCone improves chip separation and collector bag packing efficiency

·        The cone eliminates premature filter clogging for sustained performance

·        Remote-controlled digital timer can be programmed for up to 99 minutes

·        All-metal duct construction for rigidity and improved air flow

·        30-micron filter bags for improved capture of fine dust particles

·        The large impeller is powered by a 3HP motor for peak performance

·        Triple 4” dust ports allow for several hoses to be attached at the same time

·        Cloth collection bags with view window use a snap ring for rapid installation/removal

·        10 cubic feet collection bag capacity reduces number of bag changes.

·        Tall filter bags require less cleaning due to the larger surface area

·        Four swivel casters for easy maneuverability

Specifications

Part Number1792071K  TrademarkTurboCone  Remote ControlYes  Sound Rating86 - 92 dB  1-Hose Connection Diameter8 "  2-Hoses Connection Diameter4 "3-Hoses Connection Diameter4 "Bag Diameter20 "Filter Bag/Canister Length48 "  Collection Bag Capacity10 cubic footCollection Bag Length30 "Air Flow @ 4"234 cu.ft/minAir Flow @ 8"1,754 cu.ft/minStatic Pressure11.31 inch of waterParticle Size (Micron)96% of 30 micron particles  Velocity @ 4"5,200 foot per minuteAir Inlet(1) at 8" or (3) at 4"  Impeller Diameter14 "Impeller Fins7  Impeller Materialsteel  Separator Tank Diameter20 "Separator Tank Height10 "Motor Power3 HPMotor Phase1 PhMotor Voltage230 V  Prewired Voltage230 VMotor Current15 A  Web DescriptionPM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit&nbspModel NumberPM1900TX-BK1  BrandPowermatic  Overall Dimensions46 x 23 x 28 (shipped), 61 x 30 x 94 (assembled)&nbspHeight28 inchWidth23 inchLength46 inchNet Weight211 pound
