5230K30CS-0001

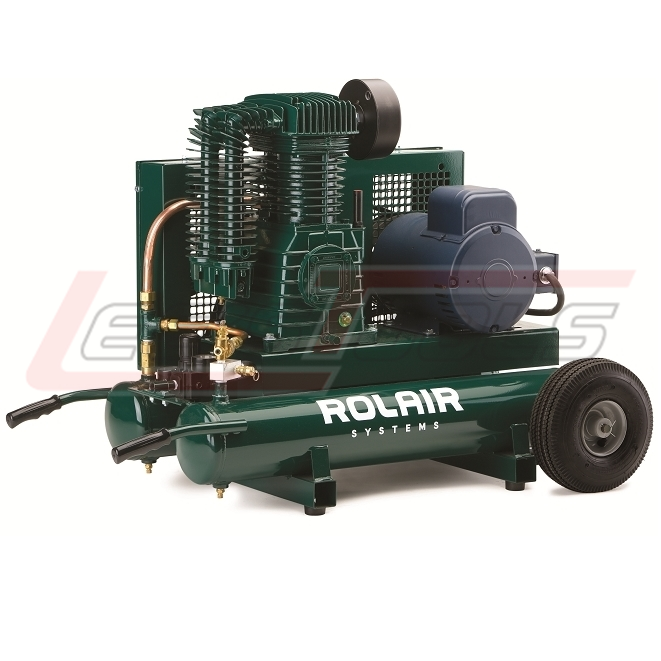

ROLAIR 5230K30CS-0001 5HP 230V 2 STAGE SPLASH 18.8 CFM @ 90 PSI 9 Gallons (23.1 CFM)

$2,180.85
$2,180.85
Skip to product information
5230K30CS-0001
  • 5230K30CS-0001
  • 5230K30CS-0001
ROLAIR 5230K30CS-0001 5HP 230V 2 STAGE SPLASH 18.8 CFM @ 90 PSI 9 Gallons (23.1 CFM)

ROLAIR 5230K30CS-0001 5HP 230V 2 STAGE SPLASH 18.8 CFM @ 90 PSI 9 Gallons (23.1 CFM)

$2,180.85
$2,180.85

Wheel Electric Compressor

Features

Pump description

Heavy-Duty, Two Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Cast Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 15.16" Flywheel, Oil Sight Gauge

Motor description

5.0 HP, 1740 RPM, Open Drip Proof, 230V – 60 HZ, Ball Bearings, Overload Protection w/Manual Reset

 Standard equipment

Pressure Gauge, 0-200 in 5 lb. Graduations, Pilot Unloader Valve, Accessory Support Clip, Intake Filter w/Silencer & Replaceable Element, Multi-Finned Intercoolers, Air-Cooled After cooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve, Constant Speed Operation

Optional equipment

Filter-Regulator-Lubricator Sets, 20 Gallon ASME Tank

Specifications

HORSE POWER

·        5.0 HP

CFM DISPLACED @ 90 PSI

·        23.1 CFM

CFM DELIVERED @ 90 PSI

·        18.8 CFM

MOTOR RPM

·        1740 RPM

PUMP RPM

·        890 RPM

PUMP OIL CAPACITY

·        47 Ounces

REED VALVE SYSTEM

·        Yes (Standard)

AUTOMOTIVE STYLE INSERTS

·        Yes (Standard)

WHEELS

·        2 Fully Pneumatic w/Sealant

TANK CAPACITY

·        9 Gallons

L x W x H

·        46 x 27 x 34

DECIBEL RATING

·        Unavailable

SHIPPING WEIGHT

·        296 lbs.
