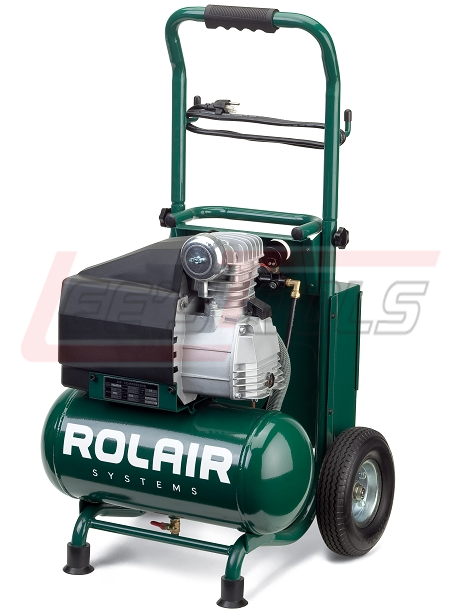

ROLAIR VT20TB Cast-Iron Cylinder, Single Stage 2 HP, 4 CFM, 1700 RPM

ROLAIR VT20TB Cast-Iron Cylinder, Single Stage 2 HP, 4 CFM, 1700 RPM

$525.73
$525.73

Hand Carry Compressor

Features

Pump description

Low Speed ~ Quiet, ROLAIR Quality, Cast-Iron Cylinder, Single Stage, Ball Bearings, Stainless-Steel Reed Valves and Splash Lubrication Ensure Longer Life

Motor description

2 HP, 1700 RPM, S1-Rated for Continuous Duty, Low-Amp Draw, Overload Protection with Manual Reset, 115 Volt, 60 Hz, Heavy-Duty/Industrial Grade with Ball Bearings for Greater Durability.

 Standard equipment

100% Duty-Cycle Motor, Reduced Operating Noise Due to Low-Speed Motor, Start/Stop Pressure Switch with On/Off Lever, Dolly-Cart with Wheels for Easy Maneuvering, User-Friendly Control Panel Including Gauges, Two Quick-Disconnect, Tool Box for Convenient Jobsite Storage, Safety-Relief Valve, Intake Filter Silencer, 12.3 Amp Motor, Initial 10-Oz. Oil Fill Included.

Specifications

HORSE POWER

·        2 HP

CFM DISPLACED @ 90 PSI

·        5.5 CFM

CFM DELIVERED @40/90 PSI

·        4.80/4.20 CFM

PUMP/MOTOR RPM

·        1700 RPM

OVERLOAD PROTECTION

·        Yes (Manual Reset Standard)

LUBRICATION TYPE

·        Splash Lubrication

PUMP OIL CAPACITY

·        10 Oz

REED VALVE SYSTEM

·        Yes (Standard)

NUMBER OF CYLINDERS

·        1

TANK CAPACITY

·        3.2 Gallons

L x W x H :

·        18 x 19 x 37

DECIBEL RATING

·        79 dBA

SHIPPING WEIGHT

·        80 lbs.
