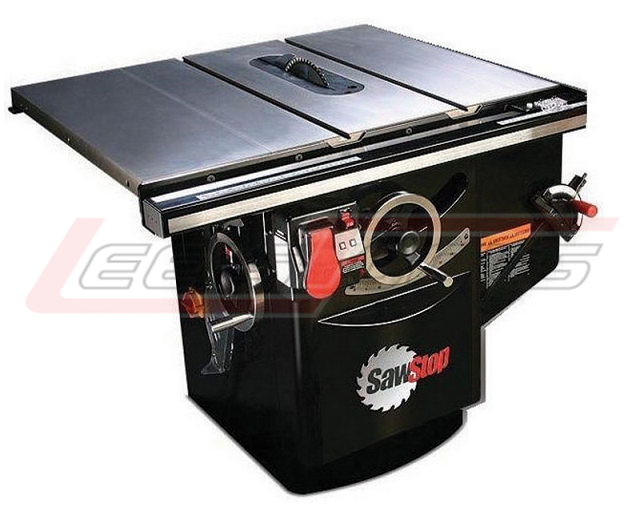

DESIGNED TO BE THE BEST CABINET SAW EVER MADE
The 10” SawStop Industrial Cabinet Saw is the reference by which all other saws are measured: Precision and heavy-duty construction, the revolutionary safety feature that’s made SawStop famous, and 99% dust collection system that’s second-tonone. It is, simply put, the finest SawStop saw ever made.
10” Industrial Cabinet Saw specs
Overall saw dimensions: 44” w x 34” d x 34’ h69 1/4” w x 36 1/2” d x 34” h (w/ optional fence & 36” rails)85 1/4” w x 36 1/2” d x 34” h (w/ optional fence & 52” rails)
ICS31230-363HP, 1PH, 230V 60HZ. 36” Industrial T-GlideICS31230-523 HP, 1PH, 230V 60HZ. 52” Industrial T-GlideICS51230-365 HP, 1PH, 230V 60HZ. 36” Industrial T-GlideICS51230-525 HP, 1PH, 230V 60HZ. 52” Industrial T-GlideICS53230-365 HP, 3PH, 230V 60HZ. 36” Industrial T-GlideICS53230-525 HP, 3PH, 230V 60HZ. 52” Industrial T-GlideICS53480-365 HP, 3PH, 230V 60HZ. 36” Industrial T-GlideICS53480-525 HP, 3PH, 230V 60HZ. 52” Industrial T-GlideICS73230-367.5 HP, 3PH, 230V 60HZ. 36” Industrial T-GlideICS73230-527.5 HP, 3PH, 230V 60HZ. 52” Industrial T-GlideICS73480-367.5 HP, 3PH, 230V 60HZ. 36” Industrial T-GlideICS73480-527.5 HP, 3PH, 230V 60HZ. 52” Industrial T-Glide Motor: (all 60Hz, TEFC):ICS31230: 3 hp 1 phase 230 V 13 A 5 hp 1 phase 230 V 20.5 A(optional)ICS53230: 5 hp 3 phase 230 V 13 A(optional)ICS53480: 5 hp 3 phase 480 V 6.5 A (optional)ICS73230: 7.5 hp 3 phase 230 V 17.8 A (optional)
Cabinet footprint: 20” w x 25” dCast iron table: 24” w x 30” d, 44” w x 30” d (w/ extension wings)Extension wing: 10” w x 30” dExtension table (optional): 24” w x 30” d (36” rails), 40” w x 30” d (52” rails)
Weights (may vary with motor):530 lbs (table saw only)635 lbs (with optional fence, 36” rails & table)685 lbs (with optional fence, 52” rails & table)
Shipping weight (approx.): 640 lbs (table saw only)Blade: 60-tooth, professional grade, 5/8” arborBlade diameter: 10”Blade tilt: LeftBlade kerf: 3mmBlade plate thickness: 2mmMax. depth of cut, blade at 0º: 3 1/8”Max. depth of cut, blade at 45º: 2 1/4”Max. rip, right of blade: 52 1/2” (with optional52” rails) 36 1/2”(with optional 36” rails)Max. rip, left of blade: 12 1/2”Dado diameter: 8” (requires a separate brake cartridge)Dado max. width: 13/16”Arbor diameter at blade: 5/8”Main bearing size: 62mm OD x 30mm IDSecond bearing size: 52mm OD x 25mm IDTable in front of blade (max. elevation): 11”Table behind blade (max. elevation): 9 3/4”Arbor Runout: 0.001” Maximum allowablerunoutBlade lateral movement over full elevation range:0.006”MaximumTable flatness measured diagonally: 0.010”Maximum gapOverall table and extension wing flatness: 0.025”Maximum gapBlade alignment with miter slot: 0.010” MaximumdisplacementDeviation of miter gauge indexing stops from actual:±0.25ºAlignment between splitter and blade: 0.010”Maximum difference
Miter slots:T-shaped, 3/4” at top, 1” at bottom, 3/8” deep11 1/8” center-to-center5 1/2” (arbor flange to center of right slot)
Dust collection port diameter: 4”Riving knife / splitter thickness: 2.33mmBlade guard: polycarbonate, extends only 5/8” to right of bladeInsert: zero clearance, phenolic core, melamine surfacesHand wheels: 8” diameter, cast iron with chrome handleBelts: 2 V-ribbed belts
