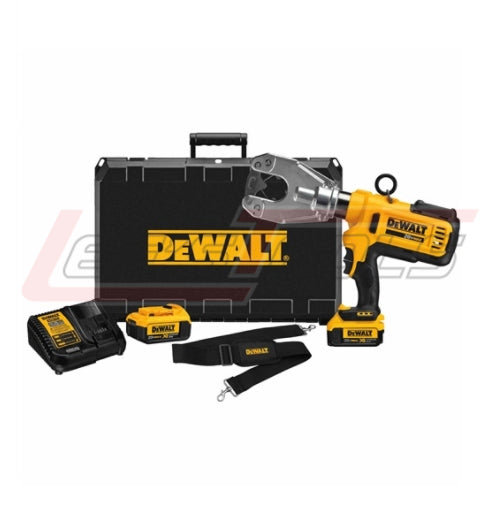

DEWALT DCE300M2 20V MAX DIED CABLE CRIMPING TOOL KIT
20V MAX* DIED CABLECRIMPING TOOL KIT
The DEWALT U-Type Died CrimpingTool (DCE300) delivers a 12-ton crimping force for UL classified crimps usingcompatible connectors from leading manufacturers. It accepts U Type dies fromall brands and has a capacity from #8 – 750 MCM Cu /Al. A 270° pivoting headallows the crimper to maneuver in tight spaces while forward and reversetrigger switches offer convenient one-handed operation. The tool features CrimpConnect™ software, an onboard intelligence system integrated into the tool thatprovides detailed reports of date, time, force, and successfully completedcycles of the crimps completed by the tool. Crimp Connect™ software alsoreports on tool calibration and service history. An integrated LED interface isused to communicate power on or power off, battery state of charge, cyclecompletion, and if recalibration or service is needed. A bright LED light helpsto illuminate the crimping area when working in dark spaces. The tool alsoincludes attachment points and a shoulder strap for convenience whentransporting around the jobsite
Features
- 750 McM Cu / 750 Al crimpingcapacity for copper and aluminum cable
- Onboard diagnostics indicatesbattery life successfully completed cycles, service needed, and operatingtermperature range
- Easily accessible forward andreverse for one-handed operation
- 270° pivoting head allows thecrimper to maneuver in tight spaces
- Crimp Connect™ software providesdetailed reports of work done
- Bright LED light help toilluminate work area
- Shoulder strap and connectionring for portability
- Accepts all U-Type Dies andcompletes UL Certified Crimps with leading manufacturers connectors & dies(See user manual for compliant chart of dies and connectors)
Specifications
| CABLE CAPACITY | 750 CU/ AL MCM |
| FORCE | 12 TONS |
| MATERIAL | COPPER |
| SYSTEM | 20V MAX* |
| TOOL LENGTH | 17.5 IN |
| DIE TYPE | U TYPE |
| HANDLE CONFIGURATION | PISTOL GRIP |
| POWER TOOL TYPE | CORDLESS |
| TOOL HEIGHT | 14 IN |
| TOOL WEIGHT | 14.6 LBS |
Includes
DCE300
(2) DCB204 4 Ah Li-Ion batteries
DCE115 Charger
Shoulder Strap
Kitbox
